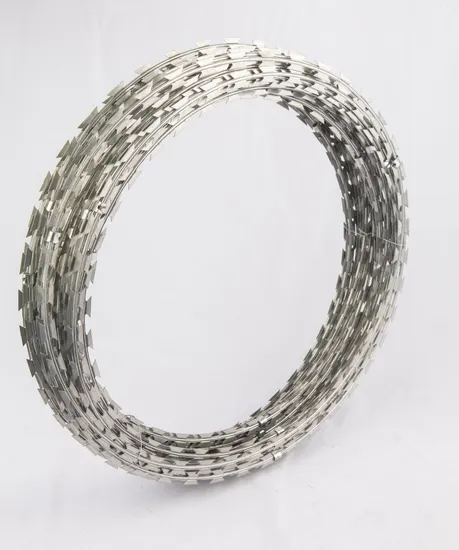

Barbed Razor Wire Sharp Blade Single Crossed Razor Security Fence
Overview Product Description BTO-22 Galvanized Razor Wire Coils With Loops Dia 600 mm Used On Ships For Anti-piracy 1. M
Description
Basic Info
| Model NO. | LW-03 |
| After-sales Service | Instruction Guide |
| Warranty | 1 Month |
| Material | Galvanized Iron Wire |
| Twist Method | Single Twist |
| Application | Protecting Mesh |
| Finish | Hot Dipped Galvanized |
| Razor Barbed Type | Cross Razor |
| Wire Gauge | 14-1/2x14-1/2 BWG |
| Barbed Distance | 4" |
| Barb Length | 10mm |
| Coil Outside Diameter | 600mm |
| Color | Silver |
| Packing | Wrapped with Weaving Bag |
| Usage | Security |
| Raw Material | Steel Coil +Steel Wire |
| Barbed Pitch | 75mm~150mm |
| Key Words | Razor Barbed Wire |
| Transport Package | Packing |
| Specification | bto-22 |
| Trademark | Nobrand |
| Origin | Hebei |
| HS Code | 73130000 |
| Production Capacity | 5000rolls/Day |
Product Description
BTO-22 Galvanized Razor Wire Coils With Loops Dia 600 mm Used On Ships For Anti-piracy
1. Material: Hot Dipped Galvanized sheet Hot Dipped Galvanized Wire / ElectroGalvanized sheet Hot Dipped Galvanized Wire2. Core Wire Diameter: 2.7±0.1mm / 2.5±0.1mm Razor Barbed sheet thickness: 0.45±0.05mm3. Razor Loop Diameter: 600mm Other Coil diameter for u choose: 300mm, 400mm, 450mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm. 450mm(3 clips), 500mm(3 clips), 600mm(3 clips)900mm(5 clips) are the usually sizes4. Razor Barbed Wire per coil weight: Be produced as customers requirements. (common weight is 7KG 10KG, 12kg, 14kg)Product Parameters| Reference | Thickness | Wire Dia | Barb Length | Barb Width | Barb Spacing |
| No. | mm | mm | mm | mm | mm |
| BTO-10 | 0.5+0.05 | 2.5+0.1 | 10+1 | 13+1 | 26+1 |
| BTO-12 | 0.5+0.05 | 2.5+0.1 | 12+1 | 15+1 | 26+1 |
| BTO-18 | 0.5+0.05 | 2.5+0.1 | 18+1 | 15+1 | 33+1 |
| BTO-22 | 0.5+0.05 | 2.5+0.1 | 22+1 | 15+1 | 34+1 |
| BTO-28 | 0.5+0.05 | 2.5+0.1 | 28+1 | 15+1 | 45+1 |
| BTO-30 | 0.5+0.05 | 2.5+0.1 | 30+1 | 18+1 | 45+1 |
| CBT-60 | 0.6+0.05 | 2.5+0.1 | 60+2 | 32+1 | 100+2 |
| CBT-65 | 0.6+0.05 | 2.5+0.1 | 65+2 | 21+1 | 100+2 |

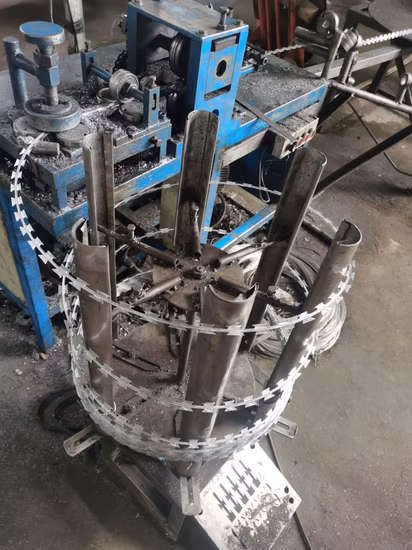

BTO-22 Galvanized Razor Wire Coils With Loops Dia 600 mm Used On Ships For Anti-piracy Prepare raw material galvanized sheet and wire, galvanized sheet punch to razor blade by machine, then core wire into razor plate, and workers use clips to connect each razor loops, finish clips pull open the concertina razor wire to test the quality, those good razor wire will be packaged with waterproof paper and woven bag outside each roll. Usually 50rolls or 100rolls be a big bundle by metal strip and the last is send to warehouse wait for loading to containers.
